| 起源の場所: | 中国 |
| ブランド名: | Mettler Toledo |
| モデル番号: | SLB515 スレッド付きビームロードセル |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | Caron箱 |
| 受渡し時間: | 10~30日 |
| 供給の能力: | 2000 1ヶ月あたりにセット |
| 製品: | メトラー・トレド ロードセル | 接続性: | 統合 |
|---|---|---|---|
| 最大容量: | 110 kg から 4400 kg (250 lb から 10000 lb) | 度量衡学: | OIML C3, NTEP 5000d III M [220kgから2200kg (500lbから5000lb) ] |
| 保護評価: | IP67 | 材料: | アルミニウム |
| 洗浄環境: | IP68/IP69K | 容量は: | 110 kg から 4400 kg (250 lb から 10000 lb) |
| 正確さ: | OIML C3, NTEP 5000d III M [220kgから2200kg (500lbから5000lb) ] | 危険 な 承認: | ATEX,FM |
| ハイライト: | threaded beam load cell,industrial weighing load cell,threaded mounting load cell |
||

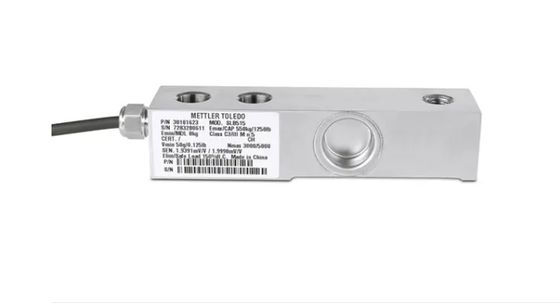

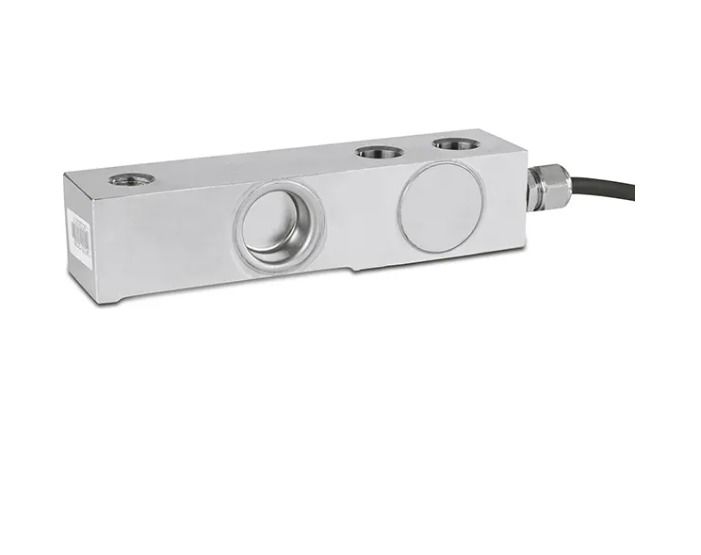

The SLB515 Threaded Beam Load Cell is a compact single-ended shear beam sensor designed for industrial weighing applications. Its threaded mounting system provides exceptional ease of integration into new or existing weighing systems.
The threaded load-introduction holes make these load cells ideal for floor scales and weighing platforms where a threaded foot provides easy height adjustment. This design offers optimal performance in various industrial applications.
The hermetically sealed, stainless-steel design makes SLB515 load cells perfect for harsh environments in process, food, and pharmaceutical applications. The IP68/IP69K protection ensures resistance to moisture and dust for maximum stability and measuring performance.
Expansion and Vibration Kit (EVK): For top mounting applications to ensure optimal performance and isolation from vibrations while permitting thermal expansion and contraction.
Foot Kit (FKT): Provides convenience in floor scale applications where height adjustment is important.
| Material | Aluminum, passivated |
|---|---|
| Maximum Capacity | 110 kg to 4400 kg (250 lb to 10000 lb) |
| Protection Rating | IP68/IP69k |
| Hazardous Approvals | ATEX, FM |
| Accuracy | OIML C3, NTEP 5000d III M [220 kg to 2200 kg (500 lb to 5000 lb)] |
SLB515 load cells are available with capacities ranging from 110 kg to 4400 kg (250 lb to 10000 lb).
Accuracy: OIML C3, NTEP 5000d III M [220 kg to 2200 kg (500 lb to 5000 lb)]
Hazardous Approvals: ATEX, FM
Yes, SLB515 is rated IP68/IP69k, making it ideal for washdown environments.
