15t SWC615-A CS Weigh Module - Robust Carbon Steel Load Cell for Industrial Applications

15t SWC615-A CS Weigh Module - Robust Carbon Steel Load Cell for Industrial Applications

商品の詳細:
起源の場所: 中国
ブランド名: Mettler Toledo
モデル番号: 計量モジュール SWC615-A CS 15t
お支払配送条件:
最小注文数量: 1 SET
価格: 交渉可能
パッケージの詳細: カロンボックス
受渡し時間: 10~30日
供給の能力: 2000 1ヶ月あたりにセット
連絡先
詳細製品概要
製品: メトラー・トレド ロードセル 最大容量: 33千ポンド (15,000 kg)
素材: めっきされた鋼鉄を亜鉛でメッキしなさい 度量衡学: OIML C3、NTEP III 5M
負荷セル: SLC611D 正確さ: 標準
保護評価: IP68/69k 環境 / 材料: ウォッシュダウン / ステンレススチール
危険物承認: ATEX、FM 重要度: 状態監視
ハイライト:

carbon steel weigh module

,

industrial load cell

,

SWC615-A weigh module

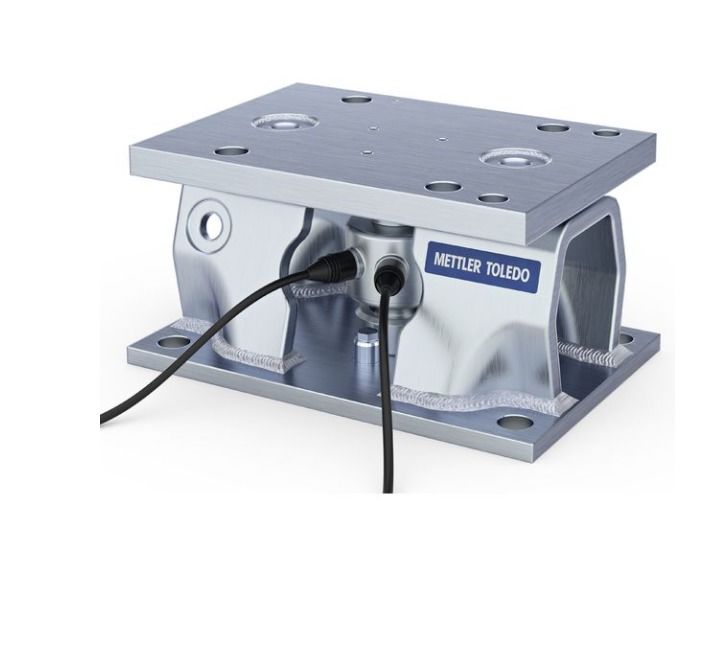

15t SWC615-A CS Weigh Module - Robust Carbon Steel Load Cell for Industrial Applications
A compression weigh module designed for industrial applications where its top plate and base plate compress under load. Ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing.
Key Features
  • Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
  • Enhanced Safety: Features 360° self-checking, lift-off & down-stops protections with hazardous approvals and IP68 load cells
  • Condition Monitoring: Tracks single load cells for overload, temperature, zero drift to prevent system shutdowns or incorrect measurements
Technical Specifications
Attribute Value
Product Mettler Toledo Load Cell
Maximum Capacity 33,000 lb (15,000 kg)
Material Zinc plated steel
Metrology OIML C3, NTEP III 5M
Load Cell SLC611D
Accuracy Standard
Protection Rating IP68/69k
Environment/Material Wash-down / Stainless Steel
Hazardous Approval ATEX, FM
Criticality Condition monitoring
