| 起源の場所: | 中国 |
| ブランド名: | Mettler Toledo |
| モデル番号: | 重量モジュール SWC515-A SS 22.5t |
| 最小注文数量: | 1 SET |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | Caron箱 |
| 受渡し時間: | 10~30日 |
| 供給の能力: | 2000 1ヶ月あたりにセット |
| 製品: | メトラー・トレド ロードセル | 最大容量: | 49500ポンド (22,500 kg) |
|---|---|---|---|
| 材質: | ステンレス鋼V2A (AISI 304) | 度量衡学: | NTEP III 5,000d OIML C3 |
| 負荷セル: | 12mケーブル SLC611 | 正確さ: | 標準 |
| 保護評価: | IP68/69k | 環境 / 材料: | ウォッシュダウン / ステンレススチール |
| 危険物承認: | ATEX、FM | 批判性: | 標準 |
| ハイライト: | 22.5 ton stainless steel weigh module,SWC515-A load cell with warranty,Mettler Toledo stainless steel load cell |
||

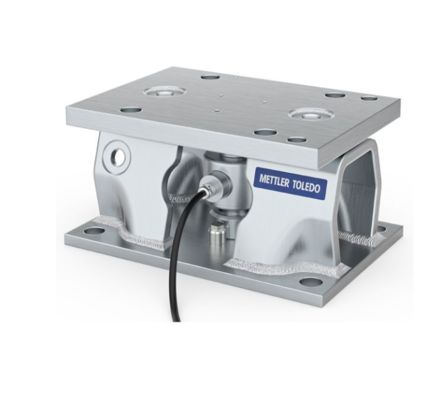

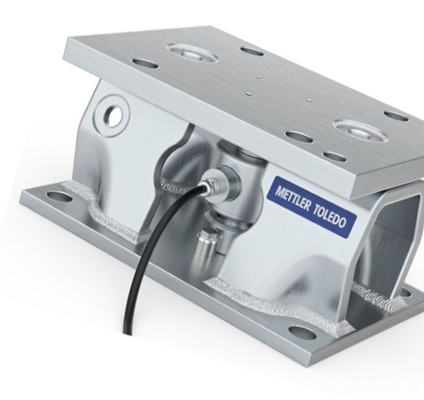

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.
For static & dynamic tanks, hoppers, mixers & conveyors. Features a high accuracy, fully approved stainless hermetic load cell suitable for all applications.
Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells for maximum reliability.
Fast and straightforward installation without damaging the Load Cell, thanks to the SafeLock™ plates. Integrated space for hydraulic jack included.
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 49,500 lb (22,500 kg) |
| Material | Stainless Steel V2A (AISI 304) |
| Metrology | NTEP III 5,000d OIML C3 |
| Load Cell | 12 m cable SLC611 |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Wash-down / Stainless Steel |
| Hazardous Approval | ATEX, FM |
| Criticality | Standard |
