| 起源の場所: | 中国 |
| ブランド名: | Mettler Toledo |
| モデル番号: | 計量モジュール SWB505 SS 1.1T2.5K C6 |
| 最小注文数量: | 1 SET |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | Caron箱 |
| 受渡し時間: | 10~30日 |
| 供給の能力: | 2000 1ヶ月あたりにセット |
| 製品: | メトラー・トレド ロードセル | 最大容量: | 2,500ポンド (1,100 kg) |
|---|---|---|---|
| 材料: | ステンレス鋼V2A (AISI 304) | 度量衡学: | NTEP III 10,000d OIML C6 |
| 負荷セル: | 0745A 5m (16.6フィート) ケーブル | 精度: | 高 |
| 保護評価: | IP68 NEMA 6/6P | 環境 / 材料: | ウォッシュダウン / ステンレススチール |
| 危険 な 承認: | ATEX, FM, cFM | 批判性: | スタンダード |
| ハイライト: | stainless steel load cell module,C6 load cell for harsh environments,1.1t capacity load cell sensor |
||
| Attribute | Value |
|---|---|
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 2,500 lb (1,100 kg) |
| Material | Stainless Steel V2A (AISI 304) |
| Metrology | NTEP III 10,000d OIML C6 |
| Load Cell | 0745A 5m (16.6ft) cable |
| Accuracy | High |
| Protection Rating | IP68 NEMA 6/6P |
| Environment / Material | Wash-down / Stainless Steel |
| Hazardous Approval | ATEX, FM, cFM |
| Criticality | Standard |

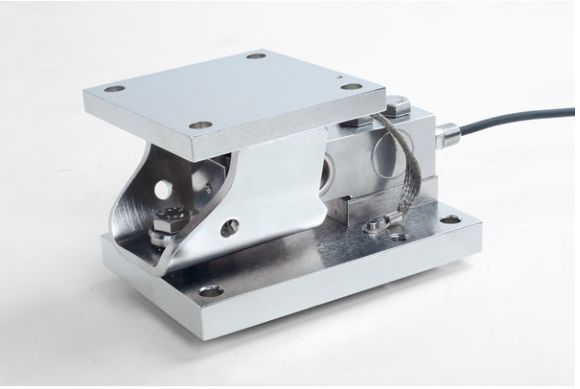

The SWB505 SS 1.1t C6 Load Cell Module is a compression weigh module designed for harsh industrial environments. When weight is applied, the top plate and base plate compress toward each other, making it ideal for direct installation on ground, piers, or structural beams.
This stainless steel sensor is commonly used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. With capacities ranging from 3 kg to 300 tons, it offers exceptional versatility.
This multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.
Engineered with 360° checking, built-in anti-uplift and down stops, hazardous area approvals, and an IP68-rated stainless steel load cell for maximum reliability.
Pre-aligned for straightforward installation with easy transition to weighing mode. Requires minimal lift for load cell removal during maintenance.
| Material | Stainless Steel V2A (AISI 304) |
| Material No | 30131904 |
| Maximum Capacity | 2,500 lb (1,100 kg) |
| Protection Rating | IP68 NEMA 6/6P |
| Environment / Material | Wash-down / Stainless Steel |
| Hazardous Approval | ATEX, FM, cFM |
| Load Cell | 0745A 5m (16.6ft) cable |
| Accuracy | High |
| Metrology | NTEP III 10,000d OIML C6 |
