Name: SLP333D-IOL Load Cell – 500kg C6/6k IO-Link Digital Weighing Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: 負荷セル SLP333D-IOL-500kg C6/6k
Availability: InStock

ホーム製品

SLP333D-IOL Load Cell – 500kg C6/6k IO-Link Digital Weighing Sensor

商品の詳細:

起源の場所:	中国
ブランド名:	Mettler Toledo
モデル番号:	負荷セル SLP333D-IOL-500kg C6/6k

お支払配送条件:

最小注文数量:	1 SET
価格:	交渉可能
パッケージの詳細:	カロンボックス
受渡し時間:	10~30日
供給の能力:	毎月2000セット

連絡先

詳細製品概要

製品:	メトラー・トレドロードセル	最大容量:	1,100ポンド (500 kg)
材質:	アルミニウム	度量衡学:	NTEP III 10,000d OIML C6
正確さ:	標準	保護評価:	IP67
危険物承認:	ATEX,FM	重要度:	標準
プラットフォームサイズ (長さ x 幅):	600 mm × 600 mm	接続性:	統合
ハイライト:	500kg digital load cell , IO-Link weighing sensor , C6 class load cell

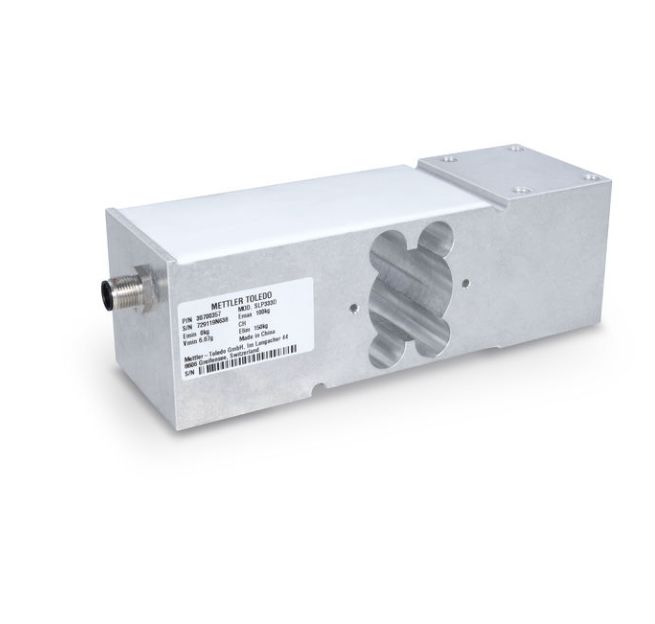

SLP333D-IOL Load Cell – 500kg C6/6k IO-Link Digital Weighing Sensor

A high-performance compression weigh module designed for industrial applications where direct PLC connectivity and precise measurement are required. The aluminum construction with passivated finish ensures durability in demanding environments.

Key Features

Integrated PLC connectivity: Direct connection to automation systems via IO-Link interface
Quick installation: Standard cables and connectors simplify setup with factory calibration
Smart5™ monitoring: Continuous condition monitoring with NAMUR NE 107 alarms
Robust construction: Aluminum housing with IP67 protection rating
Certified accuracy: NTEP III 10,000d and OIML C6 metrology standards

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	1,100 lb (500 kg)
Material	Aluminum, passivated
Metrology	NTEP III 10,000d OIML C6
Protection Rating	IP67
Hazardous Approval	ATEX, FM
Platform Size (LxW)	600 mm x 600 mm

Application Details

This compression weigh module is designed for force measurement in industrial weighing applications. The top plate and base plate compress when weight is applied, making it ideal for direct installation on ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.

Industrial Automation Ready

The integrated IO-Link interface eliminates the need for additional electronic units, providing direct digital communication with PLC systems. This feature reduces system complexity while maintaining high measurement accuracy in automated industrial environments.
