Strain Gauge Load Cell MT1260 500kg – 2m Cable for Platform and Floor Scales

Strain Gauge Load Cell MT1260 500kg – 2m Cable for Platform and Floor Scales

商品の詳細:
起源の場所: 中国
ブランド名: Mettler Toledo
モデル番号: ロードセル MT1260-500kg 2m
お支払配送条件:
最小注文数量: 1 セット
価格: 交渉可能
パッケージの詳細: カロンボックス
受渡し時間: 10~30日
供給の能力: 毎月2000セット
連絡先
詳細製品概要
製品: メトラー・トレド ロードセル 最大容量: 1,120 ポンド (500 kg)
材料: アルミニウム、不動態化 メトロロジー: NTEP III 5,000d OIML C3
Accuracy: 標準 保護等級: IP67
プラットフォームサイズ (長さ x 幅): 600 mm × 600 mm 接続性: アナログ
ケーブル: 6.6フィート (2m)
ハイライト:

Strain Gauge Load Cell 500kg

,

MT1260 Load Cell for platform scales

,

Floor scale load cell with 2m cable

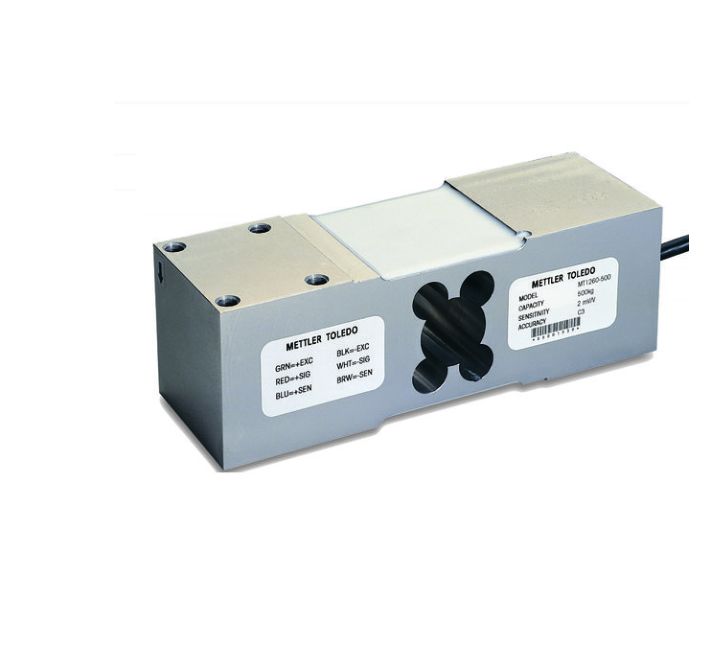

Strain Gauge Load Cell MT1260 500kg – 2m Cable for Platform and Floor Scales
A high-performance compression weigh module designed for platform and floor scales. The MT1260 load cell features off-center compensation to handle platform moments, making it ideal for large-scale weighing applications.
Key Features
  • High Accuracy: Off-center compensated design with OIML metrology approvals
  • Durable Construction: Aluminum passivated material for long-term reliability
  • Hazardous Area Ready: ATEX Zone 1/21/2/22 approvals included as standard
  • Environmental Protection: IP67 rating for dust and water resistance
Technical Specifications
Attribute Value
Product Mettler Toledo Load Cell
Maximum Capacity 1,120 lb (500 kg)
Material Aluminum, passivated
Metrology NTEP III 5,000d OIML C3
Accuracy Standard
Protection Rating IP67
Platform Size (LxW) 600 mm x 600 mm
Connectivity Analog
Cable 6.6 ft (2 m)
Application Details
Designed for compression weighing applications where the top plate and base plate are squeezed together when weight is applied. Ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.
Strain Gauge Load Cell MT1260 500kg – 2m Cable for Platform and Floor Scales 0
