SSH-100kg Load Cell with 6m Cable – Heavy-Duty Sensor for Accurate Load Monitoring and Control

SSH-100kg Load Cell with 6m Cable – Heavy-Duty Sensor for Accurate Load Monitoring and Control

商品の詳細:
Place of Origin: CHINA
ブランド名: Mettler Toledo
Model Number: Load Cell SSH-1t 2.5m
お支払配送条件:
Minimum Order Quantity: 1 set
価格: 交渉可能
Packaging Details: Caron box
Delivery Time: 10-30days
Supply Ability: 2000 set per month
連絡先
詳細製品概要
Product: Mettler Toledo Load Cell Maximum Capacity: 220 lb (100 kg)
Material: Stainless Steel Metrology: Accuracy 0.02%
Accuracy: Standard Protection Rating: IP68/69k
Platform Size (LxW): 500 mm x 500 mm Cable: 20 ft (6 m)
Connectivity: Analog
ハイライト:

SSH-100kg load cell with 6m cable

,

heavy-duty load cell sensor

,

accurate load monitoring sensor

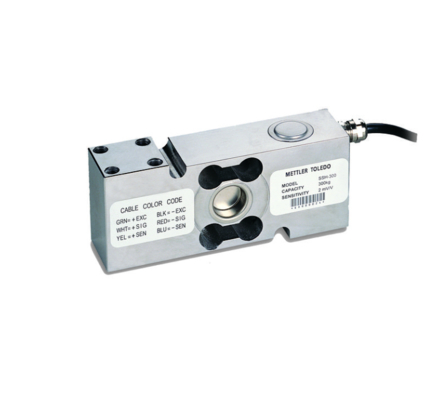

SSH-100kg Load Cell with 6m Cable – Heavy-Duty Sensor for Accurate Load Monitoring and Control
A high-performance compression weigh module designed for direct attachment to ground, piers, or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.
Key Features
  • High accuracy single point load cell with off-center compensation
  • Reliable strain gauge technology for long-term durability
  • Fully welded stainless steel construction
  • IP68/69k protection rating for harsh environments
  • Includes 6m (20ft) PVC cable
Technical Specifications
Attribute Value
Maximum Capacity 220 lb (100 kg)
Material Stainless Steel
Accuracy Standard (0.02%)
Protection Rating IP68/69k
Platform Size 500 mm x 500 mm
Cable Length 6 m (20 ft)
Connectivity Analog
Wash-Down Applications
The SSH Load Cell's stainless steel construction and IP68/69k rating make it ideal for wash-down environments and harsh industrial conditions, ensuring reliable performance and longevity.
