CM Washdown Integrated Product Inspection for Wet Environments

CM Washdown Integrated Product Inspection for Wet Environments

商品の詳細:
起源の場所: 中国
ブランド名: Mettler Toledo
モデル番号: CM 組み合わせ
お支払配送条件:
最小注文数量: 1セット
価格: 交渉可能
Packaging Details: Caron box
受渡し時間: 10~30日
Supply Ability: 2000 set per month
連絡先
詳細製品概要
製品: CMの組み合わせ パッケージングタイプ: バッグ
検査申請: 汚染検出 製品特性: 深冷凍,乾燥,中大型パッケージ,オープン,丸いコンテナ,小さな個別包装製品,小さな中規模のパッケージ,濡れ
業界: 化学,食品および飲料,金属,プラスチックおよび電子部品,医薬品およびバイオテクノロジー 計量精度: ±0.05 gから
業界セグメント: パンや菓子,ビール,ワイン,その他のアルコール飲料,化粧品,乳製品 最大製品の重量: 10 kg
最大ライン速度: 180 m/min 最大スループット: 800 PPM
ハイライト:

washdown integrated load cell

,

wet environment product inspection

,

Mettler Toledo washdown load cell

CM Washdown Integrated Product Inspection for Wet Environments
Product Overview

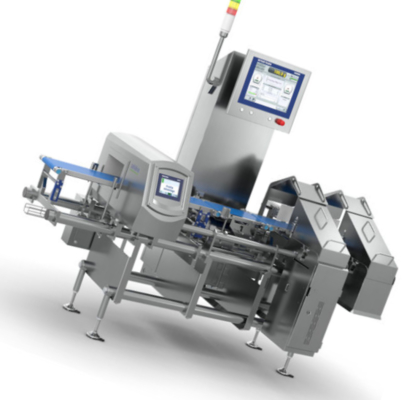

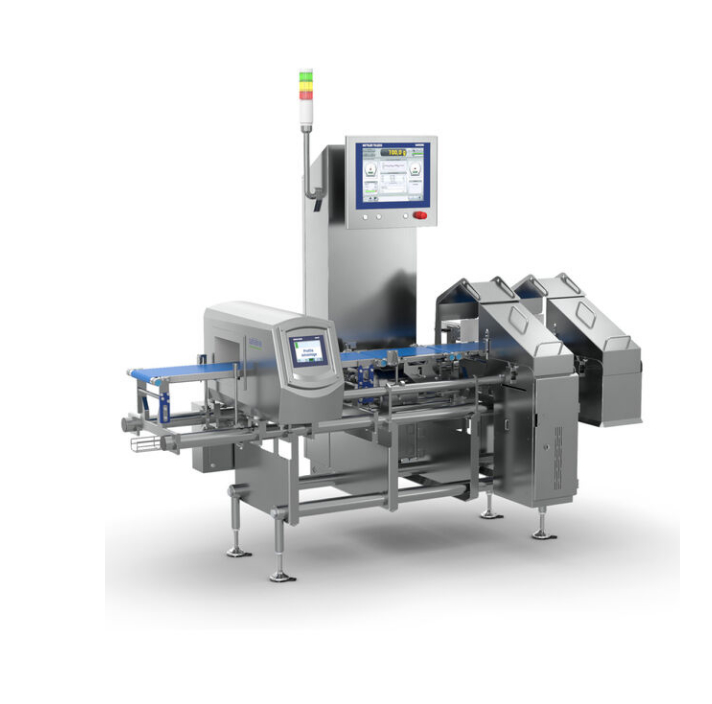

The CM Washdown Combination system is an integrated, rugged solution designed for product inspection in challenging wet and washdown environments. This two-in-one system combines a high-precision checkweigher with a sensitive metal detector in a single, robust frame, making it ideal for the food processing, meat, poultry, and dairy industries where hygiene and sanitation are paramount.

Key Features
  • 2-in-1 Solution: Combined metal detection and precision weighing system - the ideal critical control point for harsh washdown environments
  • Compact, Easy-to-clean Design: Sloped surfaces prevent liquid retention to minimize bacterial contamination, along with tool-less parts assembly offers easy maintenance
  • Compliance for Food Standards: All materials with direct food contact fully comply with Regulation (EC) 1935/2004, (EU) 10/2011 and FDA regulations for food safety
  • Reduced Cleaning Downtime: Quick, tool-less, failsafe disassembly and assembly of the metal detector and weighing conveyors supports rapid cleaning processes
Product Specifications
Material No: 2499000500
IP Rating: IP69
Compatible Software: ProdX
Connectivity: Ethernet TCP/IP, Fieldbus, OPC UA
Inspection Solution: Checkweighing-Metal Detection
Max Product Width: 400 mm
Max Weighing Zones: 7
Weighing Technology: EMFR, Strain Gauge
HMI: 12" Touchscreen, 15" Touchscreen, 7" Touchscreen
Max Product Height: 200mm
Frequencies: Dual Simultaneous up to 300 kHz, up to 600 kHz, up to 800 kHz
Product Attributes
Attribute Value
Product CM Combination
Packaging Type Bags, Bottle, Bundles, Cartons, Cases, Flow Packs, Trays
Inspection Application Contamination Detection, Foreign Body Detection, Weight Control
Product Characteristic Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech
Weighing Accuracy from ±0.05 g
Industry Segment Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, Dairy
Max Product Weight 10 kg
Max Line Speed 180 m/min
Max Throughput 800 ppm
