| Place of Origin: | CHINA |
| Model Number: | Multi-Functional Checkweighers |
| Minimum Order Quantity: | 1 set |
|---|---|
| 価格: | 交渉可能 |
| Packaging Details: | Caron box |
| Delivery Time: | 10-30days |
| Supply Ability: | 2000 set per month |

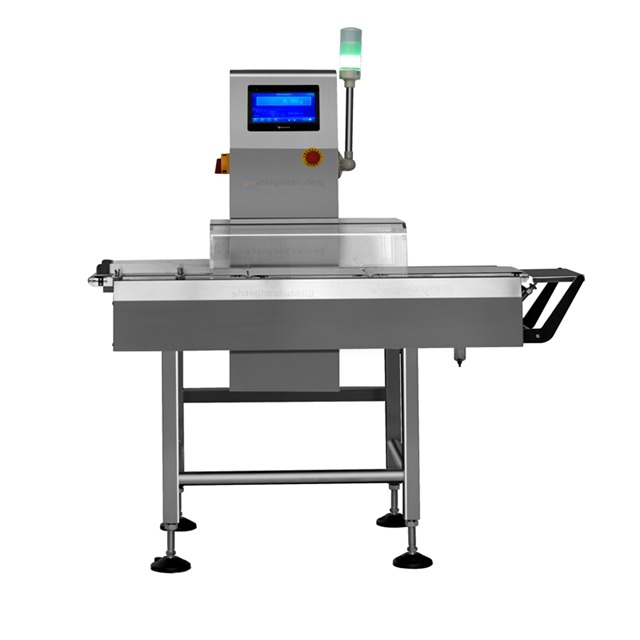

| Product: | Multi-Functional Checkweighers: Combining Weight, Metal Detection, and X-Ray Inspection | Capacity Range: | 2g-30kg |
|---|---|---|---|
| Accuracy: | ±0.1g to ±2g (speed dependent) | Minimum Detectable Deviation: | 0.5% of target weight |
| Sensitivity (Ferrous): | 0.3mm Ø | Sensitivity (Non-Ferrous): | 0.5mm Ø |
| Sensitivity (Stainless Steel): | 0.8mm Ø | Detection Resolution: | 0.5mm for dense materials |
| Energy Output: | 80-160kV (adjustable) | Density Difference Detection: | 1% contrast sensitivity |
| Throughput: | 150-800 items/minute | Rejection Speed: | <50ms from detection |
| False Reject Rate: | <0.2% | Conveyor Width: | 200-600mm (adjustable) |
| Belt Types: | PU, modular plastic, stainless steel | IP Rating: | IP65 (standard), IP69K (washdown) |
| AI Defect Classification: | 15+ predefined defect categories | Auto-Calibration: | Daily self-check with calibration weights |
| Predictive Maintenance: | Component wear monitoring | Industry Protocols: | OPC UA, Ethernet/IP, Modbus TCP |
| Data Output: | CSV, XML, SQL, PDF | Cloud Connectivity: | AWS IoT, Azure, private cloud options |
| Food Safety Standards: | HACCP, IFS, BRCGS | Pharmaceutical Standards: | 21 CFR Part 11, EU Annex 11 |
| Electrical Safety: | CE, UL, CSA certified | ||
| ハイライト: | automatic checkweigher with metal detection,multi-functional checkweigher with x-ray inspection,industrial checkweigher with weight detection |
||
| Parameter | Specifications |
|---|---|
| Capacity Range | 2g-30kg |
| Accuracy | ±0.1g to ±2g (speed dependent) |
| Minimum Detectable Deviation | 0.5% of target weight |
| Sensitivity (Ferrous) | 0.3mm Ø |
| Sensitivity (Non-Ferrous) | 0.5mm Ø |
| Sensitivity (Stainless Steel) | 0.8mm Ø |
| Detection Resolution | 0.5mm for dense materials |
| Energy Output | 80-160kV (adjustable) |
| Density Difference Detection | 1% contrast sensitivity |
